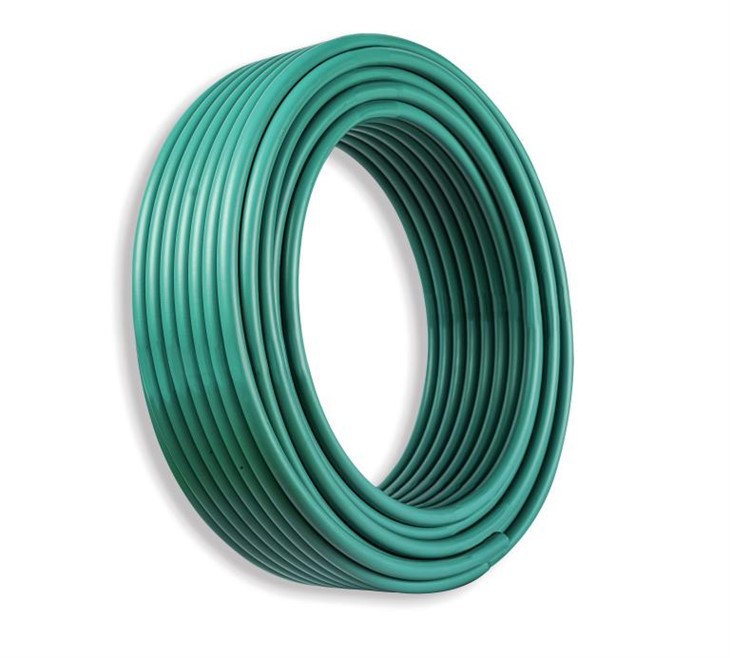

PE-Xa Pipe Watermark
PEX features a three-dimensional molecular bond created within the structure of the plastic , either before or after the extrusion process.
Description
PEX features a three-dimensional molecular bond created within the structure of the plastic , either before or after the extrusion process , Through chemical/ Physical reactions , manufacturers structurally modify the polyethylene chains , significantly improving performance on properties like heat deformation , and chemical , abrasion , and stress crack resistance . The resulting pipe has greater impact and tensile strengths , improved creep resistance , decreased shrinkage , and performs extremely well at high temperatures and pressures.

Dimension
Main material:100% Virgin LG188 / Lotte 8100GX
Production standard : ISO15875-2:2003
Package : DN 16-32 100m/ 200m / 300m per roll
DN 16-50 3m / 4m / 6m per length
Roll length can be customized according to requirements.
|
CODE |
S SERIES |
SIZE |
|
HDXA001 |
S5 |
16×1.8 |
|
HDXA002 |
S5 |
20×1.9 |
|
HDXA003 |
S5 |
20×2.0 |
|
HDXA004 |
S5 |
25×2.3 |
|
HDXA005 |
S5 |
32×2.9 |
|
HDXA006 |
S5 |
40×3.7 |
|
HDXA007 |
S5 |
50×3.6 |
|
HDXA008 |
S4 |
16×2.0 |
|
HDXA009 |
S4 |
20×2.3 |
|
HDXA010 |
S4 |
25×2.8 |
|
HDXA011 |
S4 |
32×3.6 |
|
HDXA012 |
S3.2 |
16×2.2 |
|
HDXA013 |
S3.2 |
20×2.8 |
|
HDXA 014 |
S3.2 |
25×3.5 |
|
HDXA015 |
S3.2 |
32×4.4 |

Data
|
Density |
0.951 |
g/cm³ |
|
Thermal conductivity |
0.4 |
W/m▪K |
|
VICAT Softening temperature |
130-132 |
℃ |
|
Maximum temperature of function |
110 |
℃ |
|
Coefficient of linear thermal expansion |
0.15 |
Mm/m°K |

Benefits
Easy to install and economical , PEX piping provides consistent , uniform heat , It is easy to see why radiant heating system will likely gain popularity in the years to come , Eliminating forced air to heat a space can help do away with a lot of unhealthy dust and allergens , Home builders during the Roman Empire knew what they were doing.
Application
Heating basements , garages , shops , greenhouses , farms , home additions and more .Any barn , service building , residential home , or commercial facility where labor occurs will be better if the floors are warm.
